■Mist device for large machine tools that can be mounted on large machine tools.

・Space-saving design that does not get in the way on the machine
・Mist liquid is automatically supplied to the equipment on the machine.

■Compact machine-top-mounted machine supplies high-quality mist from the top of the spindle, close to the machining point.
■Mist is automatically supplied to the equipment on the machine from a floor-mounted replenishment tank.

3 parameters for fine tuning.
Can be finely tuned to match the processing contents and environment.
Adjustable up to a maximum discharge volume of 40 cc/min.

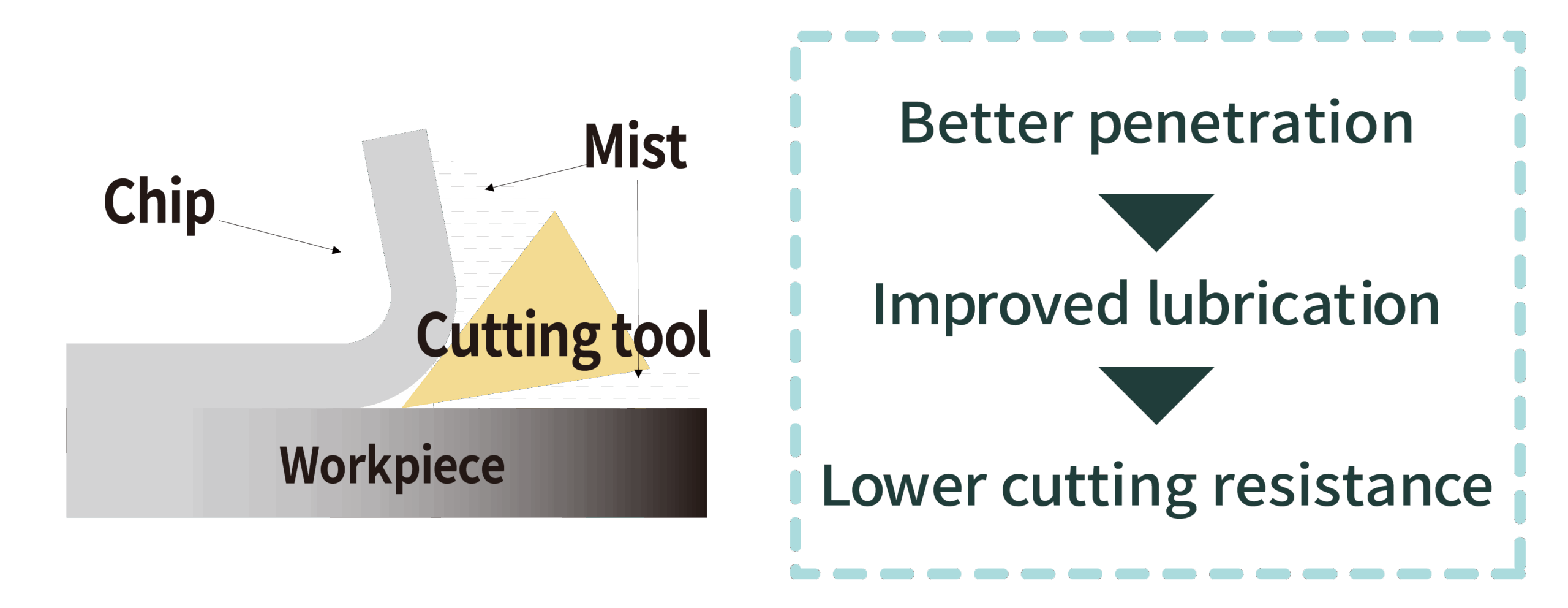

■Processing is possible with a small amount of oil
■Oil cost is also reduced
■No need for industrial waste treatment and chip decoolant treatment

　　　▶Running cost cut by approx. 60%

•

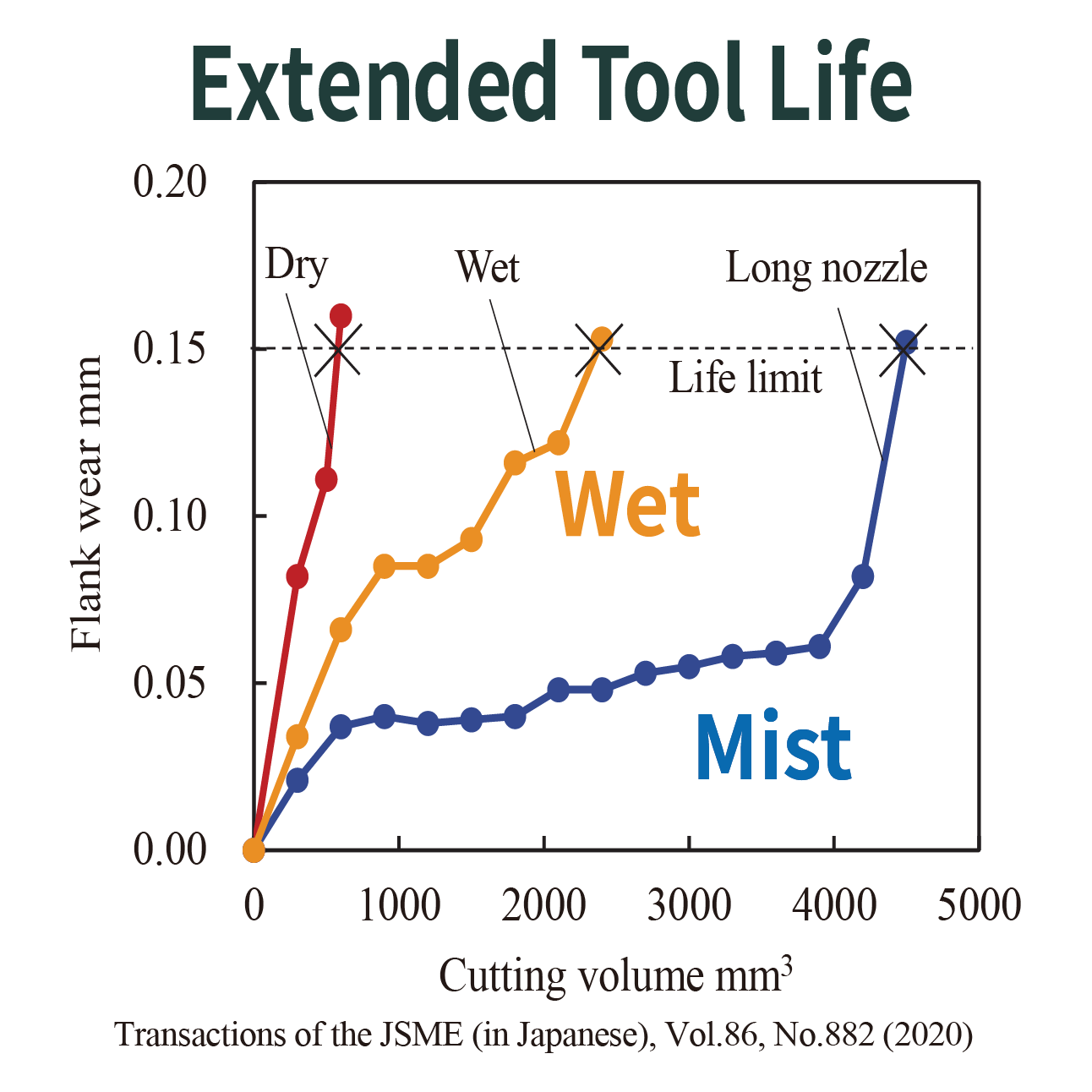

  Relationship between edge wear and machining volume, by processing method
•

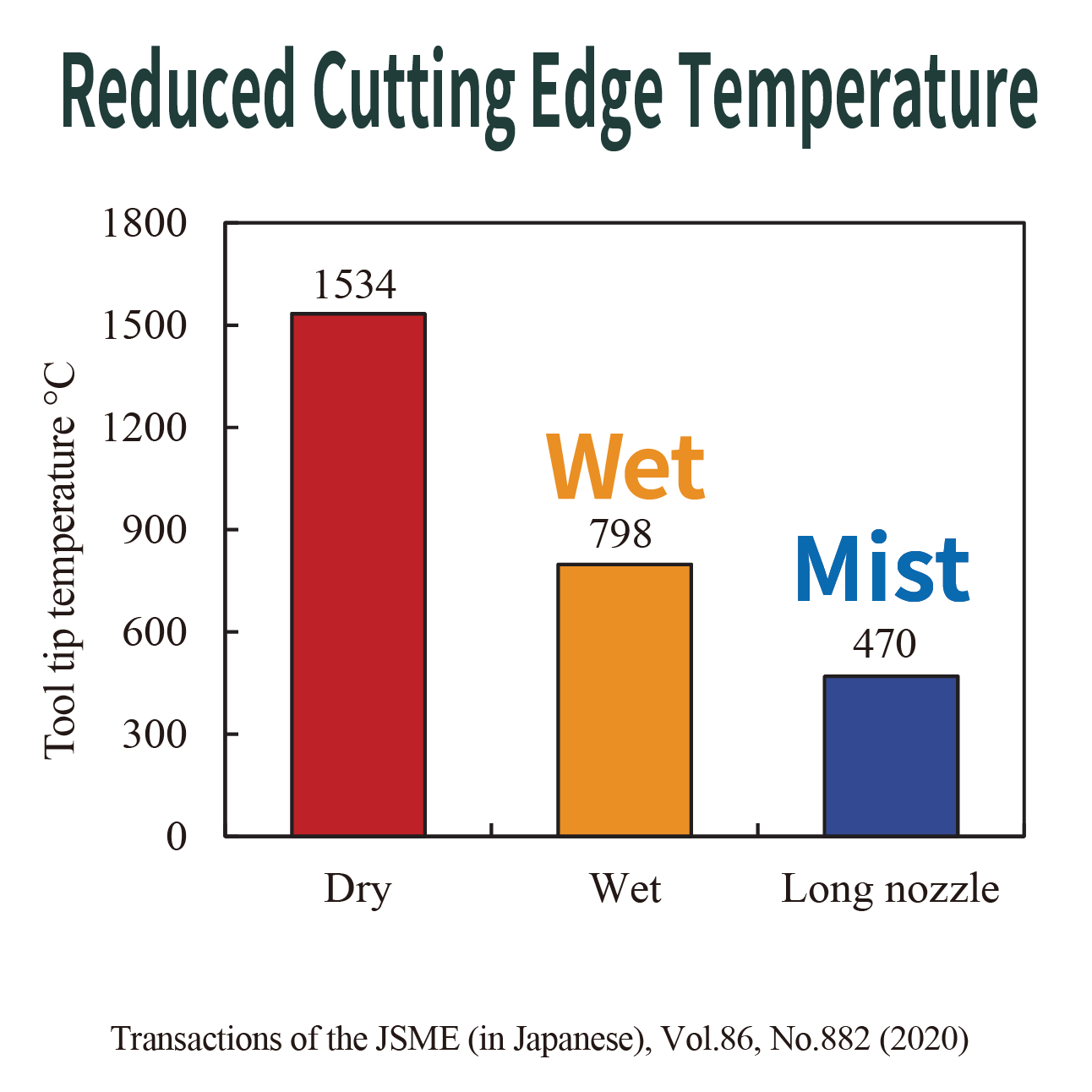

  Cutting edge temperature by processing method
•

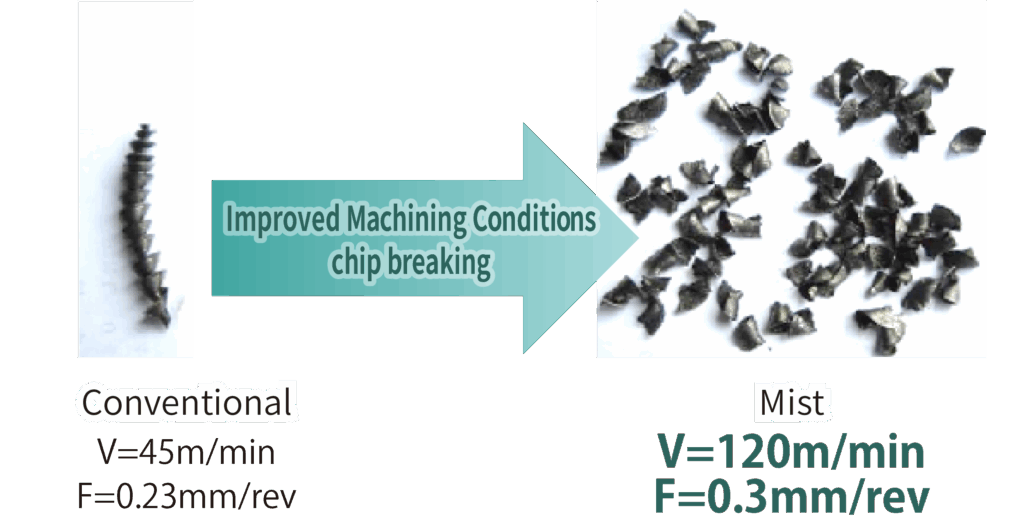

  Chips are also finely separated

◆High speed processing and high feed rate
◆Extension of tool life, etc.
◆Improved machining efficiency

　　　▶Machining efficiency increased by approx. 3.5 times, tool life doubled

Mist equipment for large machine tools that can be mounted on large machine tools. Consists of a small machine-mounted unit and a floor-mounted replenishment tank.

Standard machine to be installed beside the machine tool
