■工作機械の横に設置し使用する2ポンプタイプ
標準機「M-1」の2ポンプタイプ。
２つのポンプを使用し複数のノズルから別々のタイミングで独自機構で生成された水溶性ミストを供給することが可能。
マルチタレット旋盤などの給油経路から加工点にミストを供給します。
3 parameters for fine tuning.
Can be finely tuned to match the processing contents and environment.
Adjustable up to a maximum discharge volume of 40 cc/min.
■Processing is possible with a small amount of oil
■Oil cost is also reduced
■No need for industrial waste treatment and chip decoolant treatment
・Amount of spray ：max40cc/min
・Special misting liquid usage amount ：About 2cc/min.
Workpiece surface immediately after machining
No coolant residue = no need for coolant treatment
| Usage Volume | Amount | |
| Cutting Fluid | 14.0L | 11,660 yen |
| Cutting Fluid Refill | 20.0L | 16,660 yen |
| Coolant motor power | 1kW | 4,420 yen |
| Water | 340.0L | 70 yen |
| Cutting Fluid Replacement | 830 yen | |
| Industrial waste disposal cost | 600 yen | |
| Chip decoolanting cost | 830 yen | |
| Total | 35,070 yen |
| Usage volume | Amount | |
| COOL300 (undiluted solution) | 9.6L | 9,867 yen |
| Equipment power | 110W | 485 yen |
| Air power | 750W | 3,310 yen |
| Water | 192.0L | 39 yen |
| Total | 13,701 yen |
▶Running cost cut by approx. 60%
◆High speed processing and high feed rate
◆Extension of tool life, etc.
◆Improved machining efficiency
| Work | Construction Machinery Parts | |
|---|---|---|
| Material | FCD450 | |
| Industry | Construction Machinery | |
| Processing details |
Drilling | |
| Processing details |
Five-face drilling machine HF-4M made by Shinbon Koki | HF-4M |
▶Machining efficiency increased by approx. 3.5 times, tool life doubled

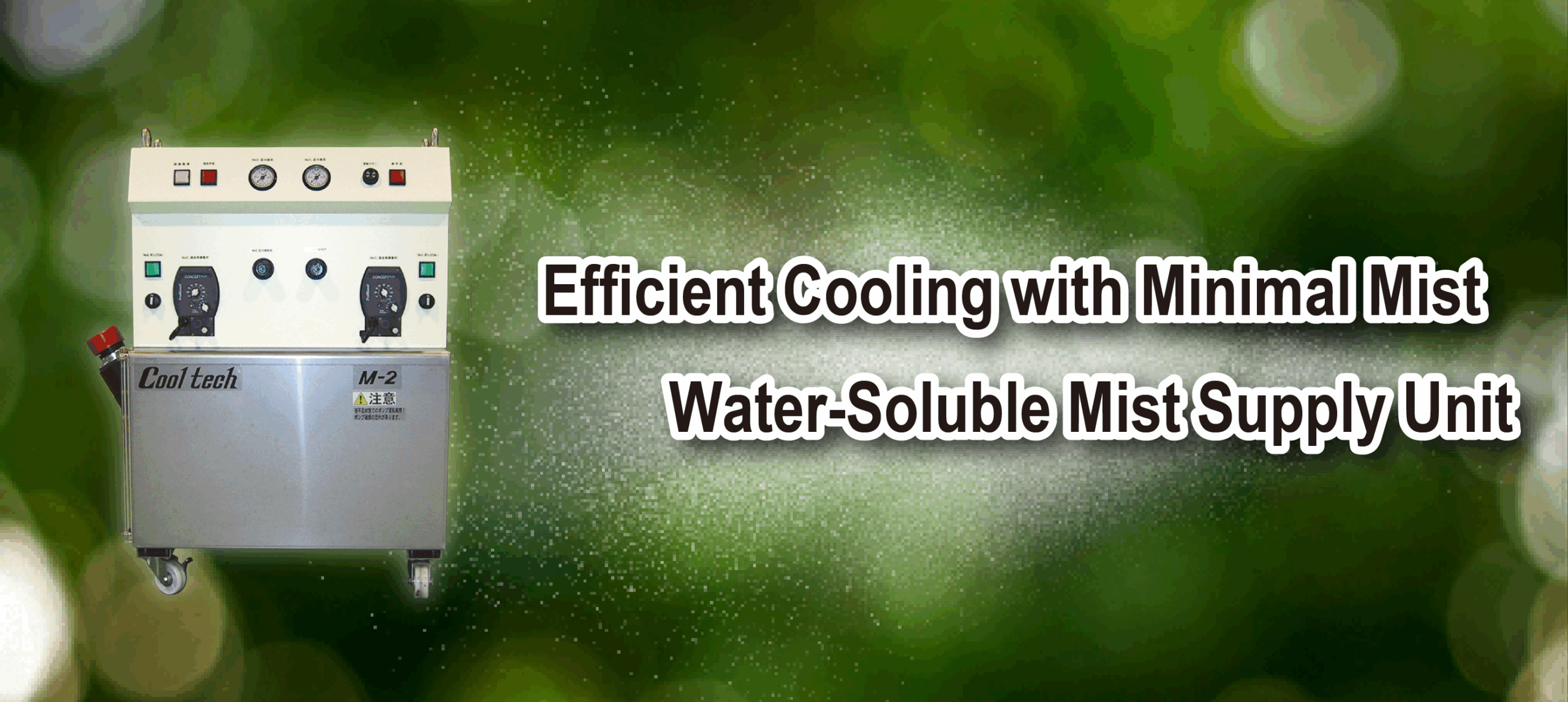

Mist equipment for large machine tools that can be mounted on large machine tools. Consists of a small machine-mounted unit and a floor-mounted replenishment tank.
Standard machine to be installed beside the machine tool
Supplies mist to machining points in the turret lubrication path of single turret lathes and spindle-through/side-through of small/medium machining centers.
For machines such as multi-turret lathes that require mist to be supplied from multiple nozzles at different times, or hobbing machines that require a larger volume of mist.
| Machine Dimensions | W715×D480×H866 | |
|---|---|---|
| Pump type | Electromagnetic metering pump: 1 unit | |
| Maximum discharge volume: 40cc/min | ||
| Minimum discharge volume: 0cc/min | ||
| Maximum discharge pressure: 1.0MPa | ||
| Required air pressure | Normal: 0.3 to 0.7MPa | |
| Air consumption | Maximum 250L/min x 2 | |
| Coolant spray volume | 0〜40cc/min ×2 | |
| Power source | Single phase 200V 50/60Hz | |
| Tank capacity | 68L | |
| Weight (dry weight) | 63kg | |
M-1 and M-2 share the same external dimensions. ※The figure is M-2
