This drop-type Brix meter features optical glass with a uniform refractive index, allowing accurate measurements with only a small drop of sample.
It offers broad applicability—from food and beverages to water-soluble cutting fluids, alkaline cleaners, and more.
An ideal choice for those using cutting fluids that contain amines.
Its palm-sized design makes it easy to carry to the sampling location.

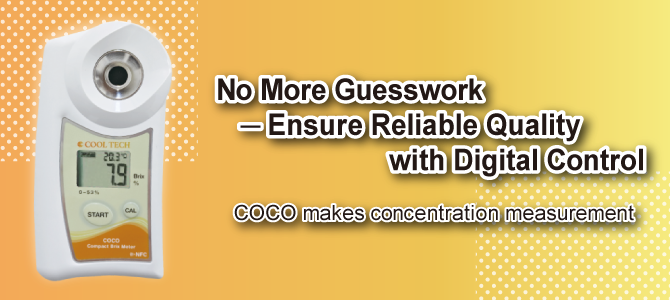

Compact Brix Meter COCO-Brix
No More Guesswork—Ensure Reliable Quality with Digital Control
| Conventional Handheld Refractometer | COCO | |
| Measurement Range | Up to approximately 30% | Capable of measuring up to 53% |
| Measurement | Reading error present | Digital reading displayed in 3 seconds |
| Temperature Compensation Range | 10～30℃ | 10～100℃ |
1. High Durability and Long Service Life
Constructed with scratch-resistant optical glass and corrosion-resistant stainless steel (SUS) for enhanced durability.
2. Compatible with Both Low- and High-Temperature Samples
Equipped with ATC (Automatic Temperature Compensation), the device automatically adjusts measurements based on sample temperature.
Its design allows the sample to quickly reach thermal equilibrium with the prism, ensuring stable and accurate readings.
3. Wide Measurement Range and Broad Material Compatibility
Capable of measuring Brix from 0.0% to 53.0% with high accuracy (±0.2% concentration).
Suitable for a wide variety of samples, including water-soluble cutting fluids, alkaline cleaning solutions, food and beverages, and seasonings.
4. Wireless communication enabled
Equipped with NFC (Near Field Communication), allowing measurement history to be retrieved simply by tapping with a smartphone or other compatible device.
Product Specifications
| Item | Main Specifications |
|---|---|
| Model | CC-BR1 |
| Measurement Range | Brix 0.0~53.0% |
| Resolution | 0.1% |
| Measurement Accuracy | ±0.2% |
| Temperature Compensation Range | 10～100℃ |
| Sample Volume | 0.3 mL or more |
| Applicable Liquids | Water-soluble cutting fluids, alkaline cleaners, food/beverages, seasonings, etc. |
| Power Supply | Two AAA alkaline batteries |
